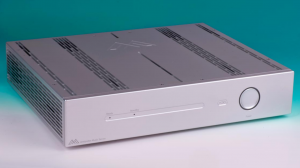

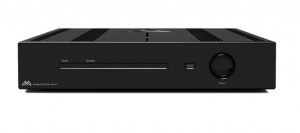

Antipodes Audio K30

The full-width Antipodes K30 is the entry model to the premium K-Series and is designed to deliver a large chunk of the K50’s performance at a more affordable price.

The Antipodes K30 integrates two separately powered and isolated computation engines:
A high power server engine to enable Server Apps to handle a large music library, re-assemble internet streams to recover the original file’s sound quality, handle DSP features without loss of quality, and to serve the cleanest possible stream to the Player App. The K30 server engine delivers single core performance on a par with the K40 and K50 and only lacks the multi-core performance of the higher models.
The K30 uses the same advanced player engine as is used in the K50, to run the selected Player App to provide high quality USB Audio output.
Insert your own SSDs or have your provider install them for you – up to 16TB. Add USB drives. Include music files located elsewhere on your network. Upload music files from anywhere on your network. Add internet streaming services. Attach an Antipodes K10 Ripper to import music from your CDs. All easily user-configurable to form a single integrated music library that is available to all playback solutions selected.

Easily select the playback solutions you wish to use, from the world’s best high-end digital audio software providers. Stream by Direct Ethernet connection or USB Audio to your main stereo system, and at the same time stream over your network to streaming devices.

Setup and control everything from your desktop, laptop, tablet or smartphone.

K30 Connections
1.- USB Audio 2.0 Output
2.- Insert up to two 2.5″ Sata SSDs. They will click securely in place.
3.- Analog Headphone Output
4.- Two USB Ports for USB Disks
5.- Dual USB Ports For External CD Ripper (eg. Antipodes K10)
6.- Ethernet Connection to Network on RJ45
7.- Ethernet Connection for Direct Streaming to Streamer on RJ45
8.- Servicing Port
9.- Mains Power IEC Inlet – User Switchable 110-120vac to 220-240vac

K30 Specifications
Cooling: Passive Fanless Silent
Case: CNC Machined From Solid Alloy
Direct Stream Ethernet Output: YES
USB Audio 2.0 Output:
– PCM to 32bit/768kHz
– DoP to DSD512
– Native DSD to DSD512
Optional Music Storage:
Easy Self-Installable Without Tools
– 2 Bay Slide-In
– Up To 16TB
Hardware Modules V5.2H For Server Apps
V5X For Player Apps
Power Supply Internal – HSL80
AC Power Switchable
– 110-120VAC 60Hz
– 220-240VAC 50Hz
Width 445mm (17.5in)
Depth 370mm (14.5in)
Height 78mm (3.1in)
Weight 10kg (22lb)
Warranty Return To Seller – 3 Years
