Luxman DA-06

Esta unidad es una fusión de las mejores especificaciones que pueden maximizar la salida de cualquier fuente de audio y un sistema que realmente puede hacer que la música se conecte con el oyente. Esta es la solución de LUXMAN para la reproducción de alta resolución. Ofrece una reproducción de calidad de los datos de audio actualmente disponibles hasta PCM 384 kHz / 32 bits y DSD 5,64 MHz. El diseño se basa en el compromiso de LUXMAN con la tecnología analógica y los desarrollos en el procesamiento utilizando la última generación de DSP.

Advanced PCM384kHz/32bit and DSD 5.64MHz processing
High resolution streaming services usually use PCM encoding such as is used on CDs. Another option is DSD encoding used for SACDs. The USB input of the DA-06 fully compatible with both PCM and DSD which many users are interested in. This unit can draw out the nuances of PCM encoded music and demonstrate it’s full potential. The USB input has a maximum PCM resolution of 384kHz/32bit and a maximum of 5.64MHz for DSD. The S/PDIF input can handle audio up to 192kHz/24bit. Streaming services may provide up to 192kHz/24bit for PCM and 2.82MHz for DSD but the DA-06 reproduction specifications exceeds these. LUXMAN have prepared for the further evolution of state of the art sound sources.
DSD stands for Direct Stream Digital, a modern digital encoding technique using quantization to numerically equate to an audio signal.

Precision, stability and jitter reduction
The enemy of data reproduction is jitter, which causes deterioration of a digital audio signal. The DA-06 uses asynchronous DSP transmission via dedicated processing which cancels out common mode noise from the USB terminal. The S/PDIF input circuit reduces jitter by using asynchronous processing and a built in DAIR (Digital Audio Interface Receiver). Furthermore, the introduction of a low phase noise clock module contributes to the accuracy of the whole signal transmission.

DAC circuitry
The DA-06 is equipped with high-end Burr-Brown PCM1792 processing chips in each of the left and right audio channels, effecting a differential output monaural mode. This circuit configuration eliminates the interference between channels and reduces the processing load per chip. The sound quality of this system has been proved with LUXMAN’s D series CD / SACD players, extending a rich, dense sound to the listener.

A variety of input and output options
The DA-06 has a total of 6 digital inputs, one USB, two coaxial, two optical and one AES/EBU (XLR). The coaxial inputs accept digital inputs from general audio equipment, optical inputs for TV and digital video equipment and pro audio equipment can be connected via the AES/EBU. Truly versatile specifications for a single DAC. The analog outputs are balanced XLR and unbalanced RCA, with 18mm spacing for high-end RCA cables

Precise circuit design

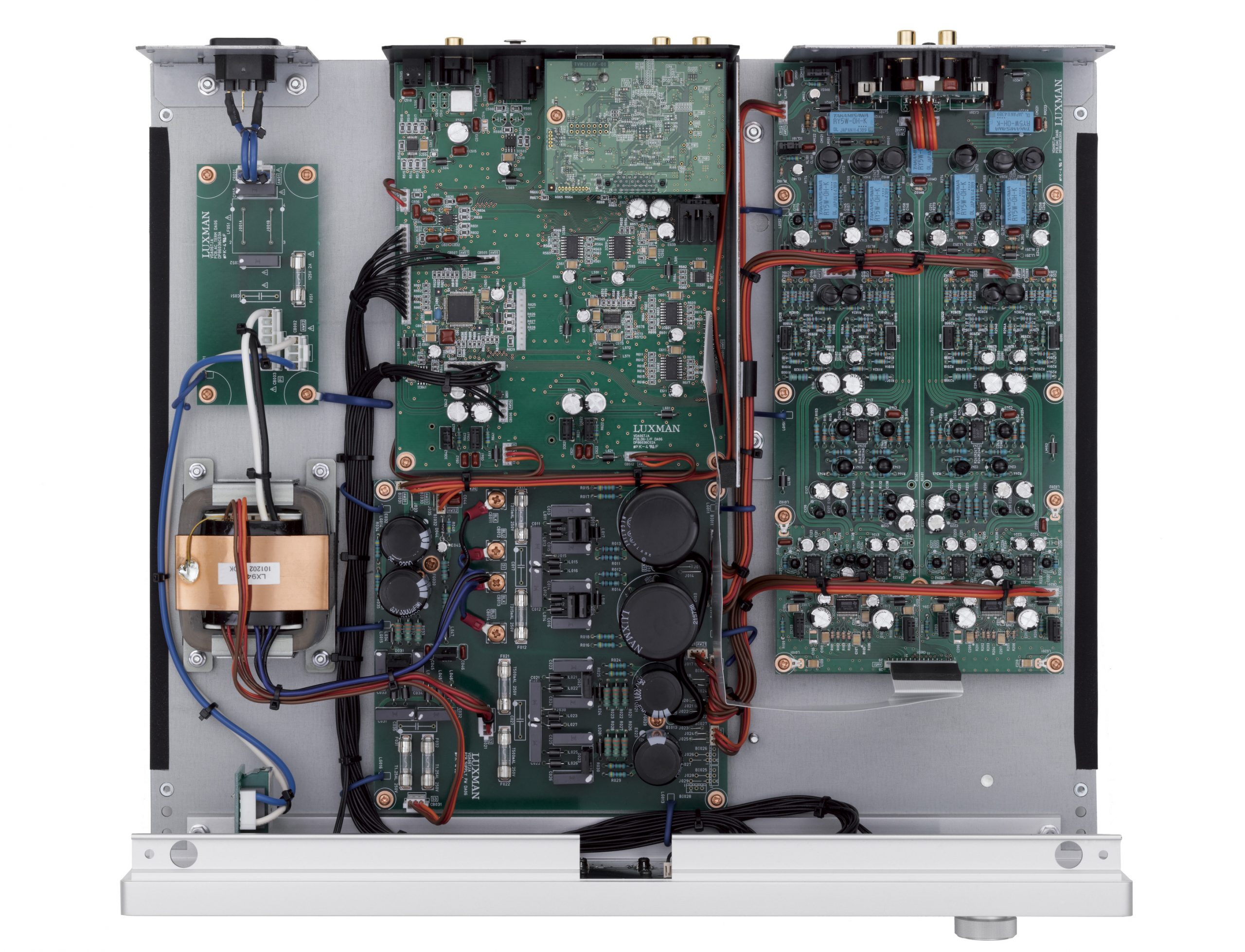

The circuit board design features LUXMAN’s non-angled audio signal circuit routing and OFC wiring contributes to the purity of the audio transmission. Superior sound quality is also derived from the use of original LUXMAN-designed components.

Front panel LED display and output functions
The DA-06 front panel features a dual display with 7-segment LEDs showing the specifications of the current playback data and values for various settings and modes. An output phase switching function applies to the balanced XLR and unbalanced RCA outputs enabling playback of reverse-phase input sources. The D/D convertor function that sends digital signal input to other equipment can be switched off to improve the quality of the analog input.

Uncompromising analog circuitry and power supply
The analog buffer amplifier circuit is a perfectly balanced system inherited from the D-06 CD/SACD player, which is used after conversion to an audio signal voltage via the DAC chip. Traditional LUXMAN circuitry with high quality components enables rich, powerful music playback. The power supply is a highly stable OI core power transformer with large capacity 10,000 microfarad blocking capacitors to support stable operation.

Steel plate chassis and robust insulator legs
The physical rigidity and weight of the chassis and the performance of the insulator legs are an important element of any piece of audio equipment. The DA-06 is a fully fledged audio component, with a chassis made from 3mm thick steel plate for high rigidity and a low center of gravity. Solid aluminum insulator legs contribute to great vibration suppression.

Dedicated DSD driver for Windows PC
The DA-06 dedicated Windows PC audio driver enables communication via USB. This driver can handle sampling frequencies up to 384kHz for PCM data as well as DoP that LUXMAN has adopted for DSD and ASIO for pro audio equipment at 2.82MHz and 5.64Mhz. Mac computers don’t need driver installation as this is handled by standard OSX USB class 2.0 operation. PCM data is supported up to 384kHz, similar to Windows. The driver can be downloaded by following this link

Spec
Supported Media 2 channel SACD, CD
Supported Sampling Frequencies USB input (PCM) 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 384kHz (16, 24, 32bit) USB input (DSD) 2.82MHz, 5.64MHz (1bit) COAX / OPT / AES / EBU input 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz (16, 20, 24bit)
Digital Input USB x 1, Coaxial x 2, Optical x 2, Balanced (AES/EBU) x 1
Digital Output Coaxial x 1, Optical x 1
Analog Output Unbalanced x 1, Balanced x 1
Total Harmonic Distortion 0.0005% (unbalanced), 0.0005% (balanced)
S/N Ratio 124dB
Frequency Response 2Hz 〜 55kHz (+0, -3.0dB)
Power Consumption 17W
Dimensions 440 (W) x 92 (H) x 400 (D) mm
Weight 11.0kg
