El MQ-300, un amplificador de potencia estéreo de válvulas de vacío de LUXMAN, utiliza piezas y circuitos cuidadosamente seleccionados para maximizar el rendimiento y la calidad tonal del último triodo de calentamiento directo: el TA-300B sigue los pasos de diseño de la obra maestra MB-300 lanzada Hace 31 años. Desde la fundación de la empresa hace 90 años, LUXMAN ha perseguido principios básicos para la creación de sonido, ‘calidad de sonido honesta y natural y sentir el campo de sonido sin exagerar’, ‘sentir la unidad del sonido con datos suficientes para toda la banda de audio’, ‘disfrute auditivo sin fatiga’, todos ellos incorporados en el MQ-300. Al expresar el sonido original, el MQ-300 da vida al espíritu de la música inscrito en sus discos favoritos.
Design history

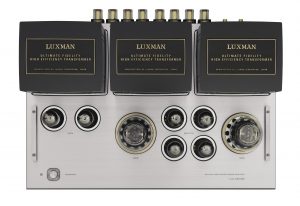

The design of the MQ-300 is a culmination of high performance parts, cutting edge technology and vacuum tube amplifier design ‘know how’ accumulated over many years. The MQ-300 is based on the cosmetic design and circuit configuration of the MB-300, the renowned masterpiece vacuum tube monaural power amplifier released in 1984. The elements of traditional design and elegant tonal quality that is unique to the performance of the TA-300B, a direct heated triode, have been maximised in the MQ-300. The MQ-300 exudes the quality of classic design from engraved nameplates bearing the company logos inlaid on the top of the metal coated transformer case and the luxurious piano finish natural walnut frame and other exterior parts. The MQ-300 represents the flagship model of vacuum tube amplifiers in which LUXMAN experience and cutting edge expertise come together to create a fitting model to celebrate the 90th anniversary of the foundation of the company.
300B single circuit configuration
The MQ-300 is a stereo power amplifier with a single configuration 8W + 8W output. The highly reliable TA-300B (manufactured by Takatsuki Electric Industry Co., Ltd) is used as the output tube for the MQ-300 and is the only output tube that is made in Japan. The configuration of the driver section is 6SN7GTB (manufactured by TungSol) two-stage parallel connection and the output section is the direct heated triode TA-300B non-feedback single power stage connection. This results in a natural and attractive tonal quality with rich musicality that is characteristic of the TA-300B. A cathod-bias type is used for the output stage which has less change in characteristics due to heat or voltage fluctuation. The DC-ignition method for heaters that suppresses hum generation is used for the 6SN7GTB and TA-300B ensuring sound quality and durability.
Large capacity output transformer
The orient cut-core large capacity output transformer with aligned magnetic fields as part of the output section supplies stable energy to the whole audio band even at the maximum power level. The logo nameplates inlaid on the top of the casings and the structure that is reminiscent of the classic OY type transformer produce a design with impact.
Output tube socket with floating structure
The output tube socket section with decorative rings has a floating support structure made of PORON which has excellent vibration damping and heat resistance to control microphonic noise. For lug terminals for wiring, large-sized steatite parts are used to provide outstanding insulation, heat resistance and durability.
Independent right and left power supply circuits
FINEMET* core material featuring low magnetic core loss and low magnetic distortion is used for the choke coil to achieve the expansive and natural sound quality. Complete independence of the right and left of the rectifying tube that includes the secondary winding of the power supply transformer, choke coil and block capacitor achieve high level separate performance.
*FINEMET is a registered trademark of Hitachi Metals, Ltd.
High rigidity aluminium chassis
For vacuum tubes design where electrons fly about, external vibration and resonance can be great enemies that can interfere with sound signal transmission. The MQ-300 combats this with a high rigidity chassis structure that combines a 1.6mm thick steel chassis, 2mm thick bottom board and a 12mm thick top panel to block such vibrations.
Rectifying tube and voltage amplifier tube
The Sovtek indirectly heated tube, the 5AR4 is selected as the rectifying tube, featuring low internal impedance and excellent regulation resulting in the gentle start-up of the power supply and thereby prolonging the life of the vacuum tube. A highly reliable TUNG-SOL 6SN7GTB that can withstand a high voltage load is used for the voltage amplifier tube.
High grade large size terminals
The MQ-300 is equipped with 4/8/16 Ω independent. 16 Ω dedicated terminals are suitable for connecting vintage speakers. Copper alloy input terminals, that combine the conductivity of copper and the hardness of brass, as well as gradation cast iron legs suppress any external vibrations.
Coupling capacitor and cathode resistance
LUXMAN’s proprietary oil capacitors are used as coupling capacitors for connecting circuits resulting in smooth sound quality. Dale non-inductive metal clad resistors are used for the cathode resistances on the output stage to avoid inductive components that may have a harmful effect on transmission signals.
Spec
Rated output 8W + 8W (4Ω, 8Ω,16Ω)
Input sensitivity 490mV (8Ω)
Input impedance 240kΩ
Frequency response 20Hz to 20kHz (+0.3,-1.5dB)
10Hz to 30kHz (+0.3, -3.0dB)
Total harmonic distortion 1% (1kHz, 8Ω, 1W)
S/N ratio (IHF-A) 105dB
Circuiting system Driver: Parallel connection two stage amplification
Output: Single configuration, cathod-bias circuit
Whole: Non-feedback amplification
Vacuum tubes 5AR4(SOVTEK) x 2
6SN7GTB(TUNG-SOL) x 4
TA-300B(Takatsuki) x 2
Power voltage 230V~(50Hz) / 115V~(60Hz)
Power consumption 190W
190W (at no input)
External dimensions 460(W) x 237(H) x 340(D) mm
rear side terminal of 36mm included in depth
Net weight 29.0kg (main unit)
Accessories Power cable
Speaker terminal Supported Y-lug terminal dimension Width of part a: 16mm or less
Width of part b: 7mm or more
* Connection may not be performed
depending on the shape of the
Y-lug terminal.
