La S7 es un altavoz de gama completa, diseño de 3 vías, de pie que incorpora nuevos diseños de tweeter, gama media y bajo que se derivan de los triunfos de ingeniería en el altavoz M-Project.
Puedes consultarnos sobre el producto por mail o whatsapp

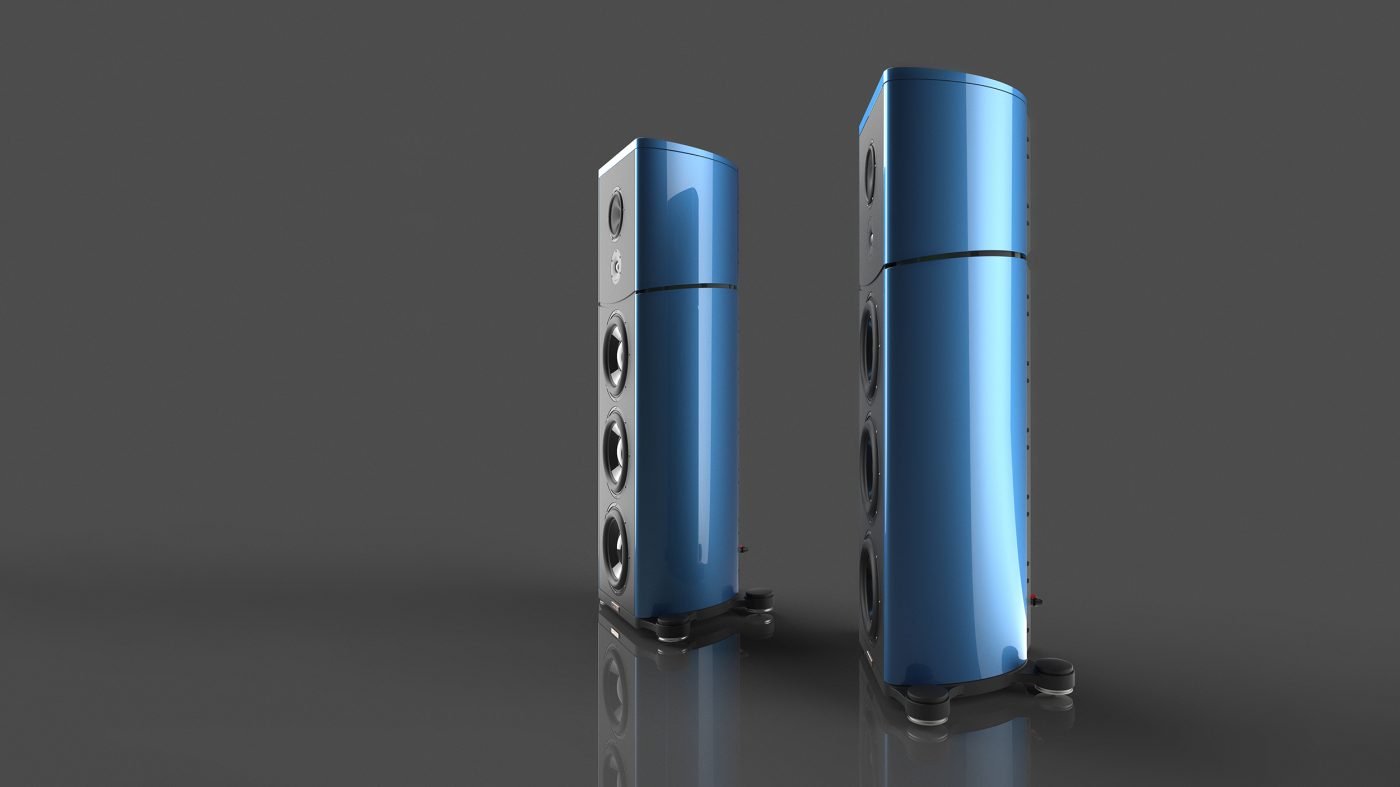

Towering over other S-Series models, the S7 is a full range, 3-way loudspeaker that incorporates new tweeter, midrange and bass driver designs which are derived from the engineering triumphs in the M-Pro loudspeaker. The S7 houses three 10-inch bass drivers that have extremely powerful magnets and ultra-stiff aluminum cones which are capable of producing deep powerful bass frequencies with speed and accuracy. The excursion rate of the voice coil is measured at 15-mm linear movement and produces clean and undistorted sound pressure levels up to 120dB @ 50Hz / 1-meter.
The new midrange driver brings a new benchmark of technology and performance to Magico. The cone material is formed of Arkema Multi-Wall carbon nanotube and Nanographene which combined is 20% lighter and 300% stiffer than previous cone material designs. The midrange driver operates in a purpose built sub-enclosure made of a proprietary polymer material that controls the back wave pressure and creates a perfect and isolated operating environment.
A newly designed 1-inch tweeter features a diamond-coated beryllium diaphragm with optimized geometry, created using state-of-the-art Finite Element analysis modeling tools. This purpose built tweeter has extra-long excursion movement and use a neodymium based motor system that is customized to match sensitivity and power handling capabilities of the S7 while maintaining ultra-wide dispersion characteristics and ultra-low distortion measurements.
The visual experience of the S7 is one of beauty and prominence. Curvaceous aluminum side panels that are machined in-house from half-inch thick aluminum extrusions which are sixteen-inches in diameter form the acoustic suspension enclosure. Internal bracing is carefully positioned throughout the enclosure to minimize disturbing resonances and create an ideal operating environment. A massive four-point outrigger supports this statuesque tower and each adjustable spike provides a perfect balancing act for this 300-pound goliath.
SPECIFICATIONS
Driver Complement:
1 x 1″ (2.54cm) Diamond Coated Beryllium Dome Tweeter
1 x 6″ (15.24cm) Graphene Nano-Tec Cone Midrange
3 x 10″ (25.4cm) Bass Aluminum Cone
Sensitivity: 89dB
Impedance: 4 Ohms
Frequency Response:
20 Hz – 50 kHz
Recommended Power:
50-1000watts
Dimensions:
53.72″H x 15.28″D x 17.48″W
(136.4cm x 38.8cm x 44.5cm)
Weight: 300 lbs. (136 kg)
